3D Facial Landmark Localization with Asymmetry Patterns and Shape Regression from Incomplete Local Features

Sukno, Federico M. orcid logoORCID: 0000-0002-2029-1576, Waddington, John L. and Whelan, Paul F. orcid logoORCID: 0000-0001-9230-7656 (2014) 3D Facial Landmark Localization with Asymmetry Patterns and Shape Regression from Incomplete Local Features. IEEE Transactions on Cybernetics, 45 (9). pp. 1717-1730. ISSN 2168-2275

Abstract
We present a method for the automatic localization of facial landmarks that integrates non-rigid deformation with the ability to handle missing points. The algorithm generates sets of candidate locations from feature detectors and performs combinatorial search constrained by a flexible shape model. A key assumption of our approach is that for some landmarks there might not be an accurate candidate in the input set. This is tackled by detecting partial subsets of landmarks and inferring those that are missing, so that the probability of the flexible model is maximized. The ability of the model to work with incomplete information makes it possible to limit the number of candidates that need to be retained, drastically reducing the number of combinations to be tested with respect to the alternative of trying to always detect the complete set of landmarks. We demonstrate the accuracy of the proposed method in the Face Recognition Grand Challenge (FRGC) database, where we obtain average errors of approximately 3.5 mm when targeting 14 prominent facial landmarks. For the majority of these our method produces the most accurate results reported to date in this database. Handling of occlusions and surfaces with missing parts is demonstrated with tests on the Bosphorus database, where we achieve an overall error of 4.81 mm and 4.25 mm for data with and without occlusions, respectively. To investigate potential limits in the accuracy that could be reached, we also report experiments on a database of 144 facial scans acquired in the context of clinical research, with manual annotations performed by experts, where we obtain an overall error of 2.3 mm, with averages per landmark below 3.4 mm for all 14 targeted points and within 2 mm for half of them. The coordinates of automatically located landmarks are made available on-line.
Metadata
Item Type:Article (Published)
Refereed:Yes
Uncontrolled Keywords:computer vision; image analysis; 3D Facial landmarks; Geometric features; Statistical shape models; Craniofacial anthropometry; 3D; Facial Landmarking
Subjects:Medical Sciences > Psychology
Medical Sciences > Health
DCU Faculties and Centres:DCU Faculties and Schools > Faculty of Engineering and Computing > School of Electronic Engineering
Publisher:IEEE
Official URL:http://dx.doi.org/10.1109/TCYB.2014.2359056
Copyright Information:© 2015 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other users, including reprinting/ republishing this material for advertising or promotional purposes, creating new collective works for resale or redistribution to servers or lists, or reuse of any copyrighted components of this work in other works.
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
Funders:Wellcome Trust (WT-086901 MA), Marie Curie IEF programme (grant 299605, SP-MORPH)
ID Code:22096
Deposited On:01 Nov 2017 14:11 by Paul Whelan . Last Modified 11 Jan 2019 13:05
Documents

Full text available as:

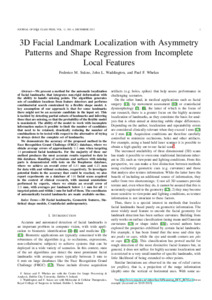

[thumbnail of SRILF_manuscriptPDF.pdf]
Preview
PDF - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader
806kB
