Login (DCU Staff Only)
Login (DCU Staff Only)

DORAS | DCU Research Repository

Explore open access research and scholarly works from DCU

Advanced Search

Control of crystal structure, morphology and optical properties of ceria films by post deposition annealing treatments

Eltayeb, Asmaa, Vijayaraghavan, Rajani K. orcid logoORCID: 0000-0003-1096-448X, McCoy, Anthony, Cullen, Joseph, McGlynn, Enda orcid logoORCID: 0000-0002-3412-9035 and Daniels, Stephen (2016) Control of crystal structure, morphology and optical properties of ceria films by post deposition annealing treatments. Thin Solid Films, 603 . pp. 363-370. ISSN 0040-6090

Abstract

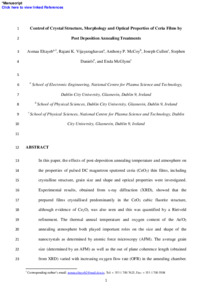

In this paper, the effects of post-deposition annealing temperature and atmosphere on the properties of pulsed DC magnetron sputtered ceria (CeO2) thin films, including crystalline structure, grain size and shape and optical properties were investigated. Experimental results, obtained from X-ray diffraction (XRD), showed that the prepared films crystallised predominantly in the CeO2 cubic fluorite structure, although evidence of Ce2O3 was also seen and this was quantified by a Rietveld refinement. The anneal temperature and oxygen content of the Ar/O2 annealing atmosphere both played important roles on the size and shape of the nanocrystals as determined by atomic force microscopy (AFM). The average grain size (determined by an AFM) as well as the out of plane coherence length (obtained from XRD) varied with increasing oxygen flow rate (OFR) in the annealing chamber. In addition, the shape of the grains seen in the AFM studies transformed from circular to triangular as the OFR was raised from 20 sccm to 30 sccm during an 800 °C thermal anneal. X-ray photoelectron spectroscopy was used to measure near-surface oxidation states of the thin-films with varying OFR in the annealing chamber. The bandgap energies were estimated from the ultra-violet and visible absorption spectra and low-temperature photoluminescence. An extracted bandgap value of 3.04 eV was determined for as-deposited CeO2 films and this value increased with increasing annealing temperatures. However, no difference was observed in bandgap energies with variation of annealing atmosphere.
Metadata
Item Type:Article (Published)
Refereed:Yes
Uncontrolled Keywords:Ceria, CeO2
Subjects:Engineering > Materials
Physical Sciences > Thin films
Physical Sciences > Spectrum analysis
Physical Sciences > Plasma processing
Physical Sciences > Nanotechnology
Physical Sciences > Crystallography
Physical Sciences > Semiconductors
DCU Faculties and Centres:Research Initiatives and Centres > National Centre for Plasma Science and Technology (NCPST)
DCU Faculties and Schools > Faculty of Science and Health > School of Physical Sciences
Publisher:Elsevier
Official URL:http://dx.doi.org/10.1016/j.tsf.2016.02.036
Copyright Information:© 2016 Elsevier
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
ID Code:21215
Deposited On:11 May 2016 10:04 by Enda Mcglynn . Last Modified 09 Jun 2020 16:06
Documents

Full text available as:

[thumbnail of Thin Solid Films, 603 (2016) 363–370]
Preview
PDF (Thin Solid Films, 603 (2016) 363–370) - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader
1MB
Downloads

Downloads

Downloads per month over past year

Archive Staff Only: edit this record
