Using the resonance hairpin probe and pulsed photodetachment technique as a diagnostic for negative ions in oxygen plasma

Conway, Jim orcid logoORCID: 0000-0003-4282-2240, Sirse, Nishant, Karkari, Shantanu and Turner, Miles M. orcid logoORCID: 0000-0001-9713-6198 (2010) Using the resonance hairpin probe and pulsed photodetachment technique as a diagnostic for negative ions in oxygen plasma. Plasma Sources Science and Technology, 19 (6). 065002-065002. ISSN 1361-6595

Abstract
In this work the resonance hairpin probe technique has been used for detection of photoelectrons generated during photodetachment experiments performed to determine negative ion density in an inductively coupled oxygen plasma. An investigation of the temporal development of the photoelectron population was recorded with the hairpin probe located inside the laser beam region and at various points outside the beam. Varying the external microwave frequency used to drive the probe resonator allowed the local increase in electron density resulting from photoelectrons to be determined. At a fixed probe frequency, we observed two resonance peaks in the photodetachment signal as the photoelectron density evolved as a function of time. Inside the laser beam the resonance peaks were asymmetric, the first peak rising sharply as compared with the second peak. Outside the laser beam region the peaks were symmetric. As the external frequency was tuned the resonance peaks merge at the maximum electron density. The resonance peak corresponding to maximum density outside the beam occurs at a delay of typically 1–2 µs as compared with the centre of the beam allowing an estimate of the negative ion velocity. Using this method, negative ion densities were measured under a range of operating conditions inside and outside the beam.
Metadata
Item Type:Article (Published)
Refereed:Yes
Uncontrolled Keywords:Oxygen Plasma
Subjects:Physical Sciences > Plasmas
DCU Faculties and Centres:Research Initiatives and Centres > National Centre for Plasma Science and Technology (NCPST)
Publisher:Institute of Physics
Official URL:http://dx.doi.org/10.1063/1.4886144
Copyright Information:© 2010 IOP
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
ID Code:20924
Deposited On:20 Nov 2015 10:01 by Fran Callaghan . Last Modified 16 Aug 2022 09:58
Documents

Full text available as:

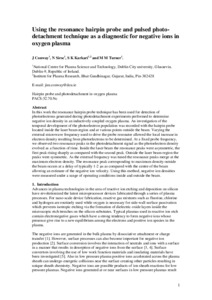

[thumbnail of Using_the_Hairpin_Probe_and_Pulsed_photodetachment_technique_as_a_diagnostic_for_negative_ions_in_oxygen_plasma_-_revised.pdf]
Preview
PDF - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader
447kB
