Field emission in ordered arrays of ZnO nanowires prepared by nanosphere lithography and extended Fowler-Nordheim analyses

McCarthy, Éanna, Garry, Seamus, Byrne, Daragh orcid logoORCID: 0000-0002-2040-9765, McGlynn, Enda orcid logoORCID: 0000-0002-3412-9035 and Mosnier, Jean-Paul orcid logoORCID: 0000-0002-9312-1754 (2011) Field emission in ordered arrays of ZnO nanowires prepared by nanosphere lithography and extended Fowler-Nordheim analyses. Journal of Applied Physics, 110 . p. 124324. ISSN 0021-8979

Abstract
A multistage chemical method based on nanosphere lithography was used to produce hexagonally patterned arrays of ZnO vertical nanowires, with 1 lm interspacing and aspect ratio 20, with a view to study the effects of emitter uniformity on the current emitted upon application of a dc voltage across a 250 lm vacuum gap. A new treatment, based on the use of analytical expressions for the image-potential correction functions, was applied to the linear region below 2000 V of the Fowler-Nordheim (FN) plot and showed the most suitable value of the work function / in the range 3.3–4.5 eV (conduction band emission) with a Schottky lowering parameter y ~ 0.72 and a field enhancement factor c in the 700–1100 range. A modeled c value of 200 was calculated for an emitter shape of a prolate ellipsoid of revolution and also including the effect of nanowire screening, in fair agreement with the experimental value. The Fowler-Nordheim current densities and effective emission areas were derived as 1011 Am2 and 1017 m2, respectively, showing that field emission likely takes place in an area of atomic dimensions at the tip of the emitter. Possible causes for the observed departure from linear FN plot behavior above 2000 V were discussed.
Metadata
Item Type:Article (Published)
Refereed:Yes
Subjects:Engineering > Materials
Physical Sciences > Electronic circuits
Physical Sciences > Nanotechnology
Physical Sciences > Semiconductors
DCU Faculties and Centres:Research Initiatives and Centres > National Centre for Plasma Science and Technology (NCPST)
DCU Faculties and Schools > Faculty of Science and Health > School of Physical Sciences
Publisher:American Institute of Physics
Official URL:http://dx.doi.org/10.1063/1.3671402
Copyright Information:© 2011 AIP
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
ID Code:19657
Deposited On:19 Nov 2013 14:43 by Enda Mcglynn . Last Modified 07 Oct 2021 12:21
Documents

Full text available as:

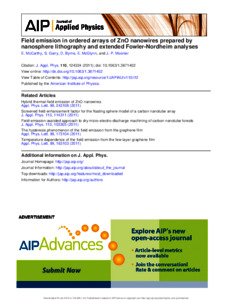

[thumbnail of Journal of Applied Physics, 110 (2011) article # 124324]
