Laser micro-processing of amorphous and partically crystalline Cu45Zr48Al7 alloy

Aqida, S.N., Brabazon, Dermot orcid logoORCID: 0000-0003-3214-6381, Naher, Sumsun orcid logoORCID: 0000-0003-2047-5807, Kovacs, Z and Browne, D.J. (2010) Laser micro-processing of amorphous and partically crystalline Cu45Zr48Al7 alloy. Applied Physics A: Materials Science & Processing, 101 (2). pp. 357-360. ISSN 0947-8396

Abstract
This paper presents a microstructural study of laser micro-processed high purity Cu45Zr48Al7 alloys prepared by arc melting and Cu-mould casting. Micro-processing of the Cu45Zr48Al7 alloy was performed using a Rofin DC-015 diffusion-cooled CO2 slab laser system with 10.6 μm wavelength. The laser was defocused to a spot size of 0.2 mm on the sample surface. The laser parameters were set to give 300 and 350 W peak power, 30% duty cycle and a 3000 Hz laser pulse repetition frequency (PRF). The PRF and duty cycle resulted a 0.1 ms pulse duration. About 100 micrometer wide channels were scribed on the surfaces of disk shaped amorphous and partially crystalline samples at traverse speeds of 500 and 5000 mm/min. These channels were analysed using scanning electron microscopy (SEM) and 2D stylus profilometry. The metallographic study and profile of these processed region sare discussed in terms of the applied laser processing parameters. The SEM micrographs showed that striation marks developed at the edge and inside these regions as a result of the laser processing. Grain formation occurred with the processed regions for processing traverse speeds of 500 mm/min in the partially crystalline samples. For the amorphous structure, channel widths of 149.6 Am, 102.2 Am and 77.4 Am were measured. Using the same processing parameters, channel widths of 158.4 Am, 122.0 Am and 91.2 Am were measured on the partially crystalline alloy surface. The scribed regions showed a maximum depth of 1.4 Am and interesting height increases above the original sample surface height of 2 Am on the amorphous sample. Micro-segregation was recorded on the samples surfaces at processing parameters of 300 W and 7.20 ms exposure time in both the amorphous and crystalline samples. The results from this work showed that micro-scale features can be produced on the surface of amorphous Cu-Zr-Al alloys by CO2 laser processing.
Metadata
Item Type:Article (Published)
Refereed:Yes
Uncontrolled Keywords:arc melting; Cu-mould casting
Subjects:Engineering > Materials
Engineering > Mechanical engineering
DCU Faculties and Centres:Research Initiatives and Centres > Materials Processing Research Centre (MPRC)
DCU Faculties and Schools > Faculty of Engineering and Computing > School of Mechanical and Manufacturing Engineering
Publisher:Springer-Verlag
Official URL:http://dx.doi.org/10.1007/s00339-010-5829-3
Copyright Information:© 2010 Springer-Verlag. The original publication is available at www.springerlink.com
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
ID Code:16681
Deposited On:10 Nov 2011 12:08 by Fran Callaghan . Last Modified 21 Sep 2018 15:02
Documents

Full text available as:

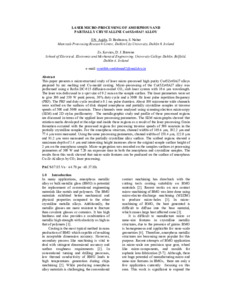

[thumbnail of Laser_micro-processing_of_amorphous_and_partially_crystalline_CuZrAl_alloy.pdf]
Preview
PDF - Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader
6MB
