Milosavljevic, Vladimir, Ellingboe, Albert R. ORCID: 0000-0002-3997-0392 and Daniels, Stephen (2011) Influence of plasma chemistry on oxygen triplets. European Physical Journal D. Atomic, Molecular, Optical and Plasma Physics. (64). pp. 437-445. ISSN 1434-6060 (In Press)
Abstract
The plasma chemistry of fluorocarbon-oxygen-argon
discharges and its influence on prominent oxygen triplets are studied. The oxygen 777 triplet is very important for the measurement of atomic oxygen in low pressure plasmas, since the 777.417 nm spectral line is frequently used for
actinometry.
In this paper we identify changes in the individual 777 triplet lines arising from cascade effects from higher energy levels of oxygen, and from resonant energy transfer from energetic carbon atoms in carbon-rich plasmas. The lower energy levels of three oxygen triplets (544 nm, 616 nm, 645 nm) are the upper states of the 777 triplet. Increased emission intensity from the 544, 616, and 645 triplets result in changes to the relative intensity of
the individual lines of the 777 triplet, and this can lead to errors in using the 777 triplet, e.g. for actinometry. Also, in operational conditions with strong carbon emission (around 601 nm), the relative intensity of the individual oxygen 777 lines is affected. The upper energy levels of these carbon lines is close to the oxygen 777 upper energy levels, suggesting that resonant energy transfer between the carbon and the oxygen is occurring.
The experiments are performed in a commercial semiconductor
dielectric etcher operating with dual rf frequencies of 2 MHz and 27 MHz. Pressure (13-19 Pa), rf power (200-1200 W), and gas mixtures (argon with addmixtures of 5-13% oxygen and C4F8) are typical in application to dielectric etching.
Metadata
Item Type: | Article (In Press) |
---|---|
Refereed: | Yes |
Uncontrolled Keywords: | oxygen triplets; 777 triplet |
Subjects: | Physical Sciences > Plasmas |
DCU Faculties and Centres: | UNSPECIFIED |
Publisher: | Springer-Verlag |
Official URL: | https://doi.org/10.1140/epjd/e2011-20213-2 |
Copyright Information: | © 2011 Springer-Verlag |
Use License: | This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License |
ID Code: | 16646 |
Deposited On: | 02 Nov 2011 14:42 by Vladimir Milosavljevic . Last Modified 20 Jul 2022 13:53 |
Documents

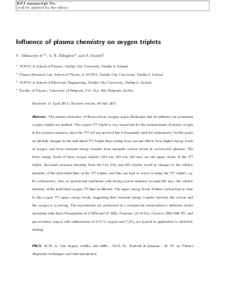

Full text available as:
Preview |
PDF
- Requires a PDF viewer such as GSview, Xpdf or Adobe Acrobat Reader
Creative Commons: Public Domain Dedication 742kB |
