Optimized performance map of an EAM for pulse generation and demultiplexing via FROG characterization

Maher, Robert D. orcid logoORCID: 0000-0001-9611-1845, Anandarajah, Prince M. orcid logoORCID: 0000-0001-7335-8044 and Barry, Liam P. orcid logoORCID: 0000-0001-8366-4790 (2007) Optimized performance map of an EAM for pulse generation and demultiplexing via FROG characterization. Optics Communications, 273 (2). pp. 500-505. ISSN 0030-4018

Abstract
We demonstrate the complete characterization of a sinusoidally driven electro-absorption modulator (EAM) over a range of RF drive voltages and reverse bias conditions. An accurate performance map for the EAM, to be employed as a pulse generator and demultiplexer in an optical time division multiplexed (OTDM) system, can be realized by employing the Frequency Resolved Optical Gating technique. The generated pulses were characterized for chirp, extinction ratio (ER) and pulse width (<4 ps). The optimization of the EAM’s drive conditions is important to ensure that the generated pulses have the required spectral and temporal characteristics to be used in high-speed systems. The ER and pulse width also influence the demultiplexing performance of an EAM in an OTDM system. This is confirmed by utilizing the EAM as a demultiplexer in an 80 Gb/s OTDM system and measuring the BER as a function of the received optical power for various values of the ER and pulse width. It is of paramount importance to accurately characterize the performance of each individual EAM as the modulators characteristics are device dependant, thus optimum performance can be achieved with slight variations to the device’s drive conditions. By employing FROG, an optimum performance map of each specific device can be deduced. Simulations carried out verified the experimental results achieved.
Metadata
Item Type:Article (Published)
Refereed:Yes
Uncontrolled Keywords:Pulse generation; Demultiplexing; Electro-absorption modulator (EAM); FROG
Subjects:Engineering > Optical communication
DCU Faculties and Centres:DCU Faculties and Schools > Faculty of Engineering and Computing > School of Electronic Engineering
Research Initiatives and Centres > Research Institute for Networks and Communications Engineering (RINCE)
Publisher:Elsevier
Official URL:http://dx.doi.org/10.1016/j.optcom.2007.01.046
Use License:This item is licensed under a Creative Commons Attribution-NonCommercial-Share Alike 3.0 License. View License
ID Code:128
Deposited On:15 Jan 2008 by DORAS Administrator . Last Modified 06 Jun 2019 15:48
Documents

Full text available as:

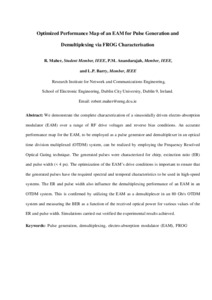

[thumbnail of opt_comm_may_2007.pdf]
